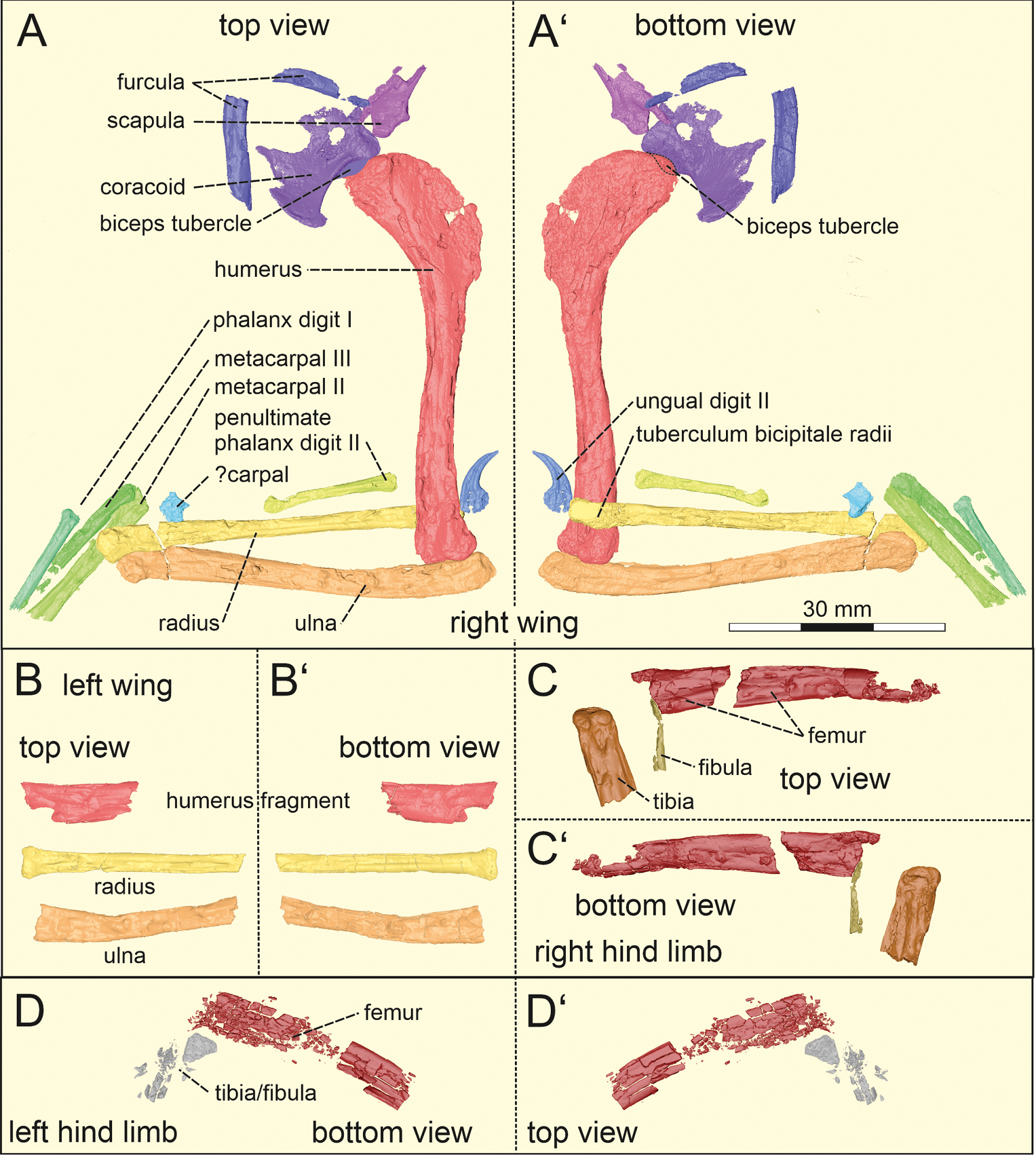

SMNK-PAL 10,000a-c, digital 3D reconstructions based on tomography of all parts of the specimen. A. Exposed top and A’. Embedded (in matrix) bottom views of the right arm and shoulder in SMNK-PAL 10,000a; note the presence of a tuberculum bicipitale radii; B. Exposed top and B’. Embedded bottom view of the left arm consisting of fragments including the left radius and ulna of SMNK-PAL 10,000b; C. Exposed top and C’. Embedded bottom views of the left hind limb of SMNK-PAL 10,000c; D. Exposed top and D’. Embedded bottom views of the right hind limb of SMNK-PAL 10,000c.



  Part of: Foth C, van de Kamp T, Tischlinger H, Kantelis T, Carney RM, Zuber M, Hamann E, Wallaard JJW, Lenz N, Rauhut OWM, Frey E (2025) A new Archaeopteryx from the lower Tithonian Mörnsheim Formation at Mühlheim (Late Jurassic). Fossil Record 28(1): 17-43. https://doi.org/10.3897/fr.28.131671
